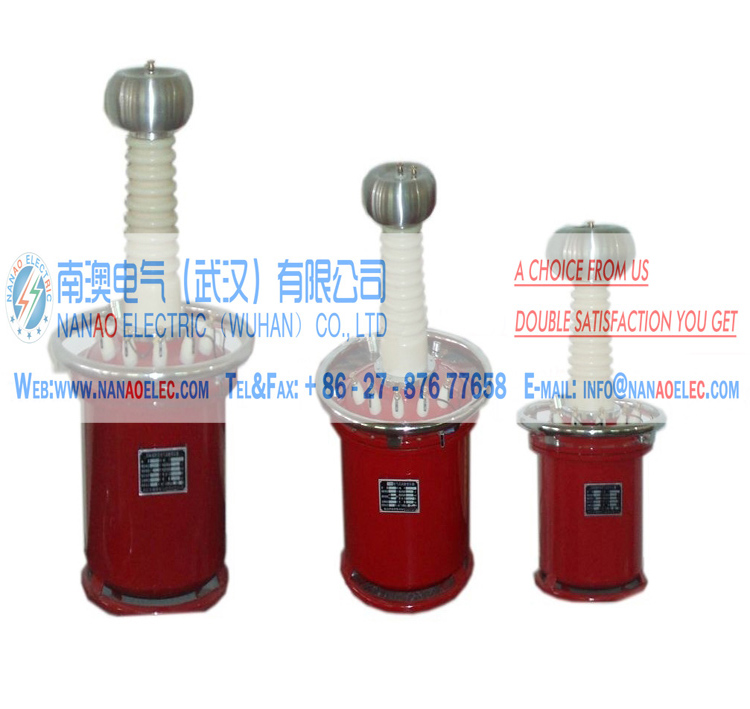

NAYDQ Series Gas type Testing Transformer
Also called name
NAYDQ inflatable high voltage test transformer withstand voltage complete set, inflatable test transformer, high voltage test transformer withstand voltage complete device, high voltage test transformer complete set, inflatable AC and DC test transformer, air test transformer
Product characteristics
1,The gas type testing transformer is in small size and light weight ( it is lighter 40% to 65% than the same level of oil-immersed testing transformer)
2,Clean, greaseless, do not need maintenance after use
3,Weather-proof , on site testing without standstill
4,The dielectric strength is higher than the oil type testing transformer, and the corona is minimal
Introduction of test transformer
As the only one of applying the SF6 gas-isolated technology, it replaces the oil-immersed transformer by the small volume, light weight, stabilization, and little-current of partial discharge. The voltage capacity of single transformer can even reach 1000kVA/1000kV. It’s also environment-friendly, free of maintenance, long using term, and excellent performances.
As the national new product and patented product, it’s particularly applicable in partial discharge test of 110kV and 220kV electrical devices. And it’s the nanao electric company new generation of ideal high-voltage testing devices with two kinds of products, the metal & dielectric shell and the singe –stage & cascade voltage. It can also be used in the environment of cold and high latitude districts, like altiplanocie

Output voltage	50kV	100kV	150kV	200kV	250kV	300kV
Input voltage	200V	200V	400V	400V	400V	400V
Rated voltage of Partial discharge	≤5pC	≤5pC	≤5pC	≤5pC	≤5pC	≤5pC
Impedance voltage	＜8%	＜8%	＜8%	＜10%	＜10%	＜10%
No-load current	≤4%	≤4%	≤4%	≤5%	≤5%	≤5%
Waveform distortion	＜3%	＜3%	＜3%	＜3%	＜3%	＜3%
Air pressure（Mpa）	0.4	0.4	0.5	0.5	0.5	0.5
