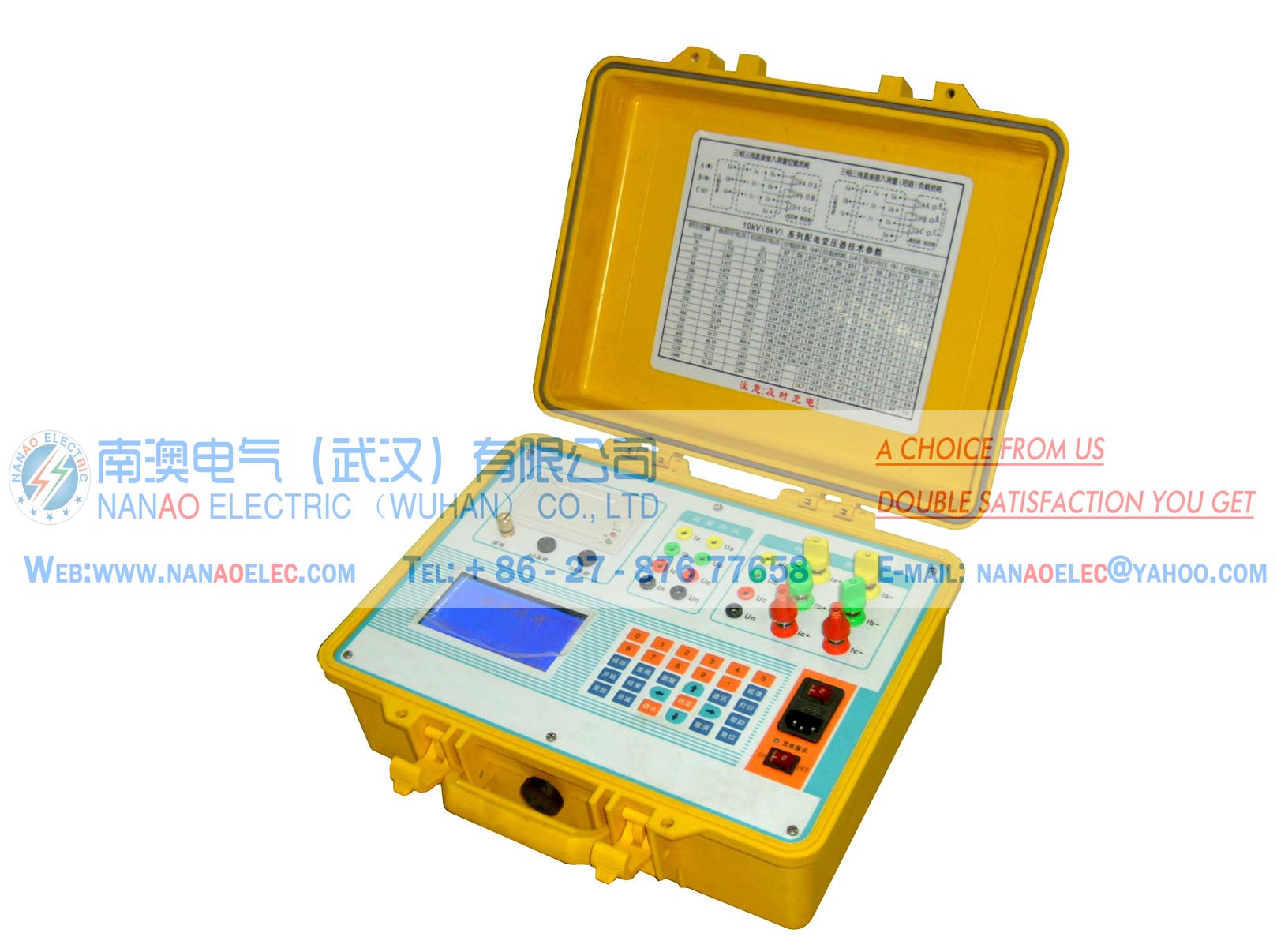

NADXC power harmonic measuring tester
Also called name
NADXC Power Harmonic Meter, Power Harmonic Alarm, Power Harmonic Tester, Power Harmonic Analyzer, Power Harmonic Measurement Analyzer

The main performance and technical indicators of NADXC
This power quality of the power grid is a measure of the quality of the power supplied to the user at the receiving end and for the user to use. It covers five aspects: supply voltage tolerance, utility harmonic, three-phase voltage unbalance, power system frequency tolerance, voltage fluctuation and flicker.
NADXB power harmonic measurement alarm object for the 45 ~ 65Hz AC frequency measurement of the signal.

The specific technical parameters are as follows
1. Measurement accuracy
Table 1. main instrument performance and technical indicators

Data	Measuring range	Working error	Resolution	Remarks
AC Voltage	( 10～500）V	±（0.4%Reading + 0.1% of range）	0.1V	Max：600V
AC Current	Current clamp can option		0.001A	Max：1.1 times
Power	U*I*PF	PF=1.0：±（0.4%Reading + 0.1% of range）    PF=0.5：±（0.8%Reading + 0.2% of range）	< 200W 0.1W ≥200W  1W	Test current > 0.01*Current range
Power factor	0.20～1.00	±0.02	0.01	> 0.5A;
Frequency	（45～65）Hz	±0.01 Hz	0.01 Hz	U > 50 V
Electricity	9999.9 MWh	PF=1.0：±（0.4%Reading + 0.1% of range）     PF=0.5：±（0.8Reading + 0.2% of range）
Time	1m~999h59m	±0.05 ％	1 Second
Harmonics	1~50  times
Real time		24 Hour Format	1 Second

Note: The current range of reference meter matching current clamp, customer orders should confirm the appropriate current clamp.

2. Other parameters:
Input mode: voltage and current are floating input;
Input impedance: Voltage terminals: ≥ 600 kΩ;
Current terminal: current clamp
Measurement signal maximum peak: voltage and current are 1.6 times the maximum range;
Conversion rate: about 20,000 times / second;
Display update: about 2 times / sec;
Power consumption: <5W;
Instrument weight: about 4 kg
Meter size: width x height x height: (264 × 117 × 330) mm

3. Working environment:
Atmospheric pressure: (86 ~ 106) kPa;
Temperature: (0 ~ 40) ℃;
Humidity: ≤ 85% RH
Working power: AC 220V ± 15% 50 / 60Hz
