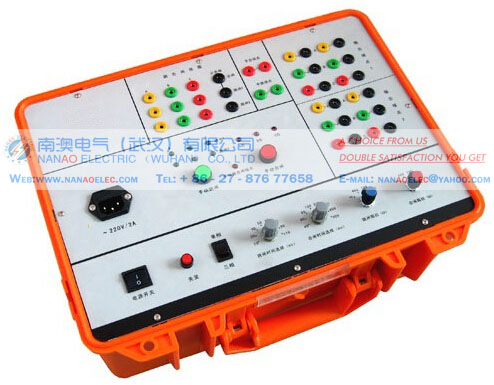

NAMDQ high-voltage circuit breaker simulation device
(also known as double-hop high-voltage circuit breaker analog device)
Product features and usage
NAMDQ uses domestic original compound arc suppression circuit (electronic arc extinction + mechanical arc), greatly improving the device life and stability. At the same time double-hop high-voltage circuit breaker analog devices using large-scale field programmable gate array, with the protection of the principle of manufacturing power electronic devices, tripping coil in an independent dual-loop design, can simulate the voltage level 6-750KV three-phase and phase Operation, single trip coil or double trip coil circuit breaker action behavior for power systems, industrial and mining enterprises, research institutes, professional institutions, the protection of manufacturers use, as a relay protection and automatic devices with the entire group of transmission test drive system The actual circuit breaker replacement equipment, action accurate, reliable, unlimited number of actions can greatly improve the correctness and integrity of the test, to minimize the number of actual circuit breaker action and improve service life, is the relay protection test work Of the important ancillary equipment. NAMDQ exterior structure for the portable use of engineering plastic waterproof chassis, suitable for field test use.

Main Data

Work Power	AC 220V 10% 50Hz
跳、合闸操作电压	DC 220V or DC 110V
跳、合闸线圈	单合双跳线圈，跳闸6相，合闸3相
Phases	One Phase / Three Phases
跳、合闸时间
跳闸时间选择	20ms、30ms、40ms、50ms、60ms、70ms、80ms、90ms、100ms、110 ms，误差不超过±5 ms
合闸时间选择	40ms、60ms、80ms、100ms、120ms、140ms、160ms、180ms、200ms、500 ms，Accuracy: ±5 ms，（500ms时，Accuracy: ±20 ms）
跳、合闸电流
跳闸电流（电阻）选择	∞Ω、400Ω、200Ω、100Ω,可以根据用户要求任意配置。跳闸线圈Ⅰ、Ⅱ并联使用时,跳闸电流增大一倍
合闸电流（电阻）选择	∞Ω、400Ω、200Ω、100Ω,可以根据用户要求任意配置。
断路器失灵
开出量
接点容量	DC-0.5A/220V，AC-5A/220V
断路器位置输出接点	断路器位置输出接点12对，相互独立。分为两组，与断路器跳闸线圈相对应。跳闸线圈Ⅰ每相1对常开和1对常闭接点。跳闸线圈Ⅱ有每相1对常开和1对常闭接点。
手合、手跳接点	手合、手跳按钮各有一对同步输出常开接点
