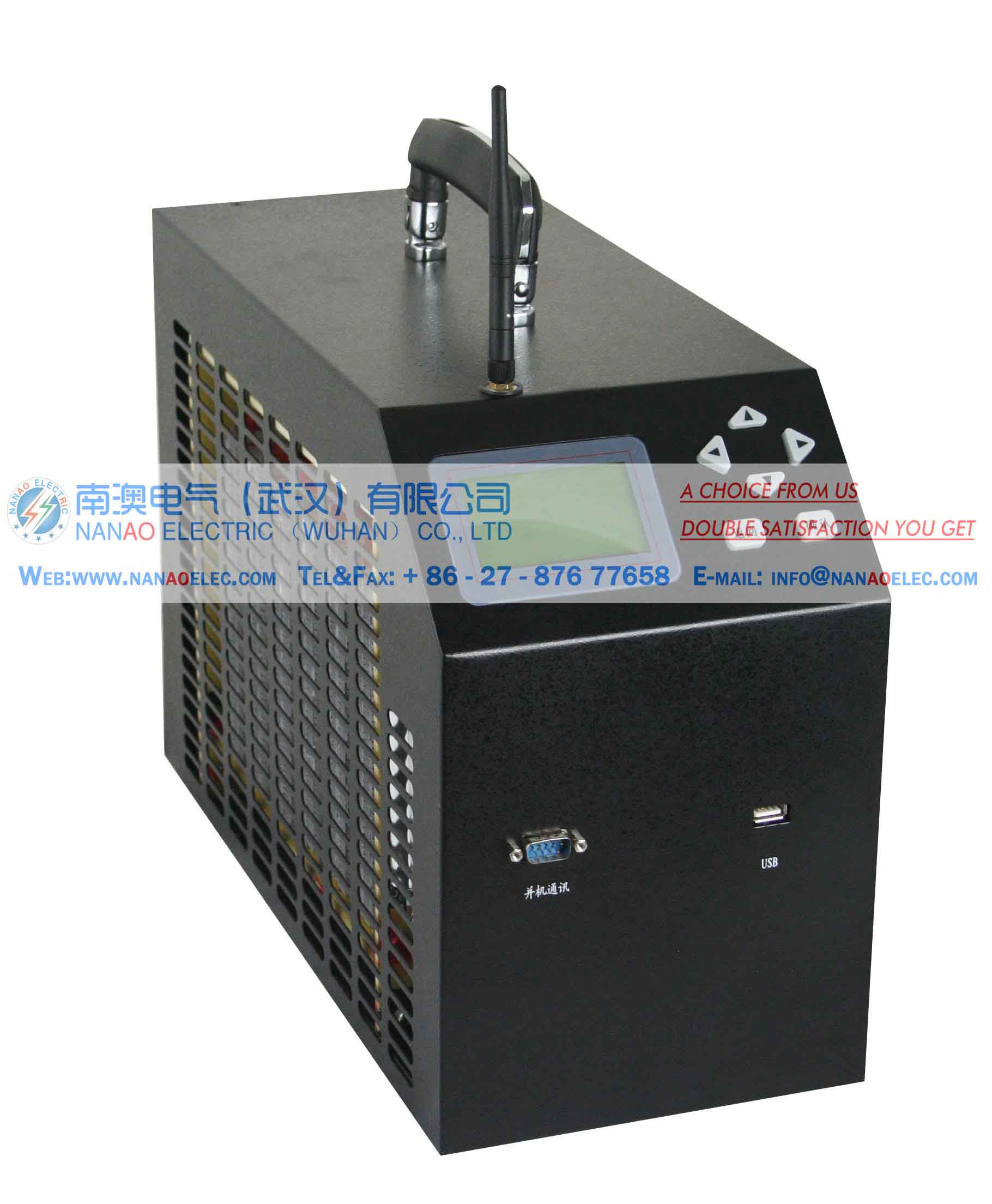

NA8810 battery intelligent discharge monitor
Also called name
Battery intelligent discharge monitor, NA8810 battery intelligent discharge inspection instrument, battery activation instrument, intelligent battery online monitor, battery comprehensive characteristic tester, battery resistance tester, NA8810 battery intelligent discharge monitor
Product introduction
The NA8810 Smart Discharge Monitor is designed specifically for battery discharge test, capacity test, battery routine maintenance, project acceptance and other DC power supply load tests. Using the latest wireless communication technology, PC monitoring software can monitor the battery discharge process in real time and monitor the discharge process of each battery.
Intelligent discharge monitor power consumption part of the new PTC ceramic resistors as a discharge load, completely avoiding the red hot phenomenon, safe, reliable and pollution-free. Machine control by the microprocessor, LCD display, Chinese menu. New design, small size, light weight, easy to move. After setting various discharge parameters, the entire constant current discharge process is completed automatically. Completely intelligent. Make the whole discharge process safer.
Intelligent discharge monitor series of portable, intelligent professional design to discharge test work has become simple and easy, greatly reducing the labor intensity of professional maintenance staff, but also improve the discharge test of science and intelligence.

Main Features
1, NA8810 intelligent discharge monitor using PTC ceramic resistors, safety, failure will automatically protect.
2, wireless capabilities, allowing users to monitor the room at the office of the discharge status.
3, multi-machine parallel discharge, to meet customer demand for high-current discharge.
4, U disk storage function, convenient and computer management software communication, in order to form a powerful data analysis capabilities, WORD automatically generate data reports.
5, with AC and DC power supply mode (AC220V or DC48V), to facilitate the user to adapt to different occasions.
6, with backward battery sorting function.
7, light weight, easy to carry.

Main functions
1, check the discharge test
1) The discharge current can be set continuously. According to the set discharge current constant current discharge, monitor the discharge process battery and single cell voltage, single cell and battery capacity measurement (check the capacity of the test).
2) A variety of discharge stop conditions set
    A. The total battery voltage B. Single battery voltage
    C. Discharge time D. Discharge capacity
3) A variety of single battery to adapt: 2V，4V，6V，12V，24V，48V，110V，220V (other voltage can be customized)
2, rapid test. Short-term (10-20 minutes) discharge, rapid test single cell internal resistance and discharge capacity, rapid identification of battery performance.
3. During power outage / actual load discharge, the cell voltage, battery voltage and discharge current are automatically monitored online, the discharge capacity of the battery is recorded to ensure the judgment of the battery status.
4, discharge voltage monitoring after charging. When the charger charges the battery pack after discharging, the device can monitor the voltage and current of the single battery and the whole battery in the charging process, and monitor the charging current (optional current clamp) and set the alarm.
5, PC wireless monitoring. PC in 100M to achieve discharge monitoring system for wireless data monitoring, alarm function.
6, data management: perfect computer management analysis and monitoring software, has a strong data analysis and processing capabilities, the use of advanced mathematical models, the battery of a number of measurement results of a comprehensive calculation and analysis to accurately determine the battery performance, and check the battery's real-time Operating status and historical data, apply for the parameters, curves, and generate reports.
