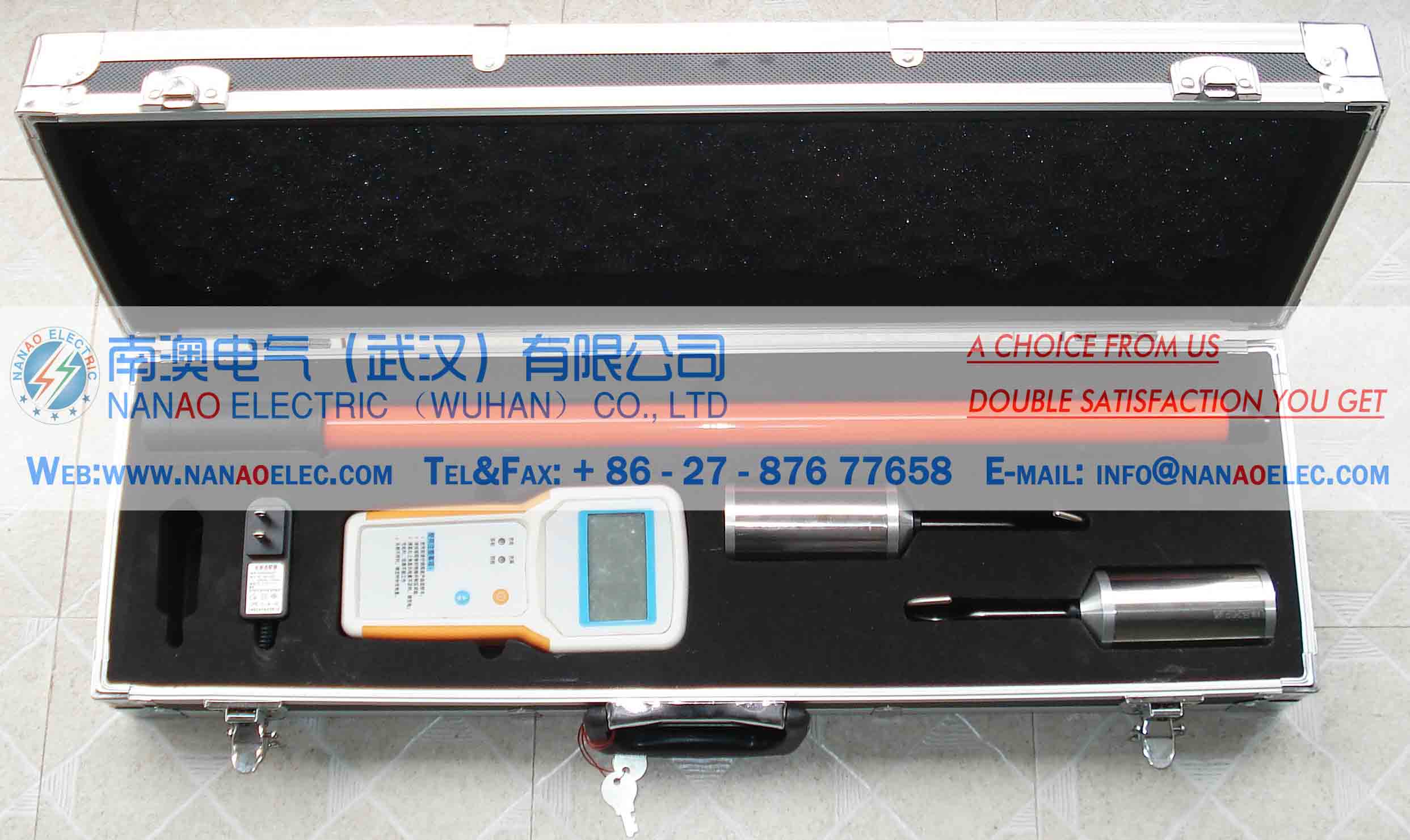

NAHX series of high-voltage electroscope
Also called name
high-voltage electroscope,High-voltage wireless sensor, satellite wireless nuclear phase instrument, satellite wireless voice nuclear phase instrument, high-voltage wireless positioning voice nuclear phase instrument, nuclear phase device, nuclear phase instrument, nuclear phase device, wireless nuclear phase device, high pressure nuclear phase device, Phase instrument, voice nuclear phase instrument, voice nuclear phase instrument
Brief introduction
HV Detectors made by an electronic integrated circuit sound light indication, stable and reliable. With full circuit self-test function and anti-jamming features. NAHX series HV Detectors for electric inspection 220V-500V, 6kV, 10kV, 35kV, 110kV, 220kV, 500kV AC transmission and distribution lines and equipment, whether it is day or night, indoors or outdoors overhead line substation stations are correctly and reliably serve you, the electrical power system and the industrial and mining sectors necessary safety equipment.
Classification of NAHX series H.V Detectors
Accordance with the applicable voltage level can be divided into :0.1-10kVH. V Detectors, 6kV, 10kVH.V Detectors, 35kV, 66kVH.V Detectors, 110kV, 220kV,500kV H.V Detectors, 500kVH.V Detectors.
Can be divided according to type: NAHX-2 (green light Indication type).
Technical Parameters
(1) 6kV H.V Detectors
Effective insulation Length: 840mm; Handle length: 500mm; Section: 5; retaining ring diameter: 50mm; contact electrode length: 50mm
(2) 10kV H.V Detectors
Effective insulation Length: 840mm; Handle length: 500mm; Section: 5; retaining ring diameter: 50mm; contact electrode length: 50mm
(3) 35kV H.V Detectors
Effective insulation Length: 1400mm; Handle length: 500mm; Section: 5; retaining ring diameter: 50mm; contact electrode length: 50mm
(4) 110kV H.V Detectors
Voltage rating: 110kV; back state length: 200cm; stretched length: 60cm
(5) 220kV H.V Detectors
Voltage rating: 220kV; back state length: 300cm; stretched length: 80cm
(6) 500kV H.V Detectors
Voltage rating: 500kV; back state length: 160cm;stretched length: 720cm
