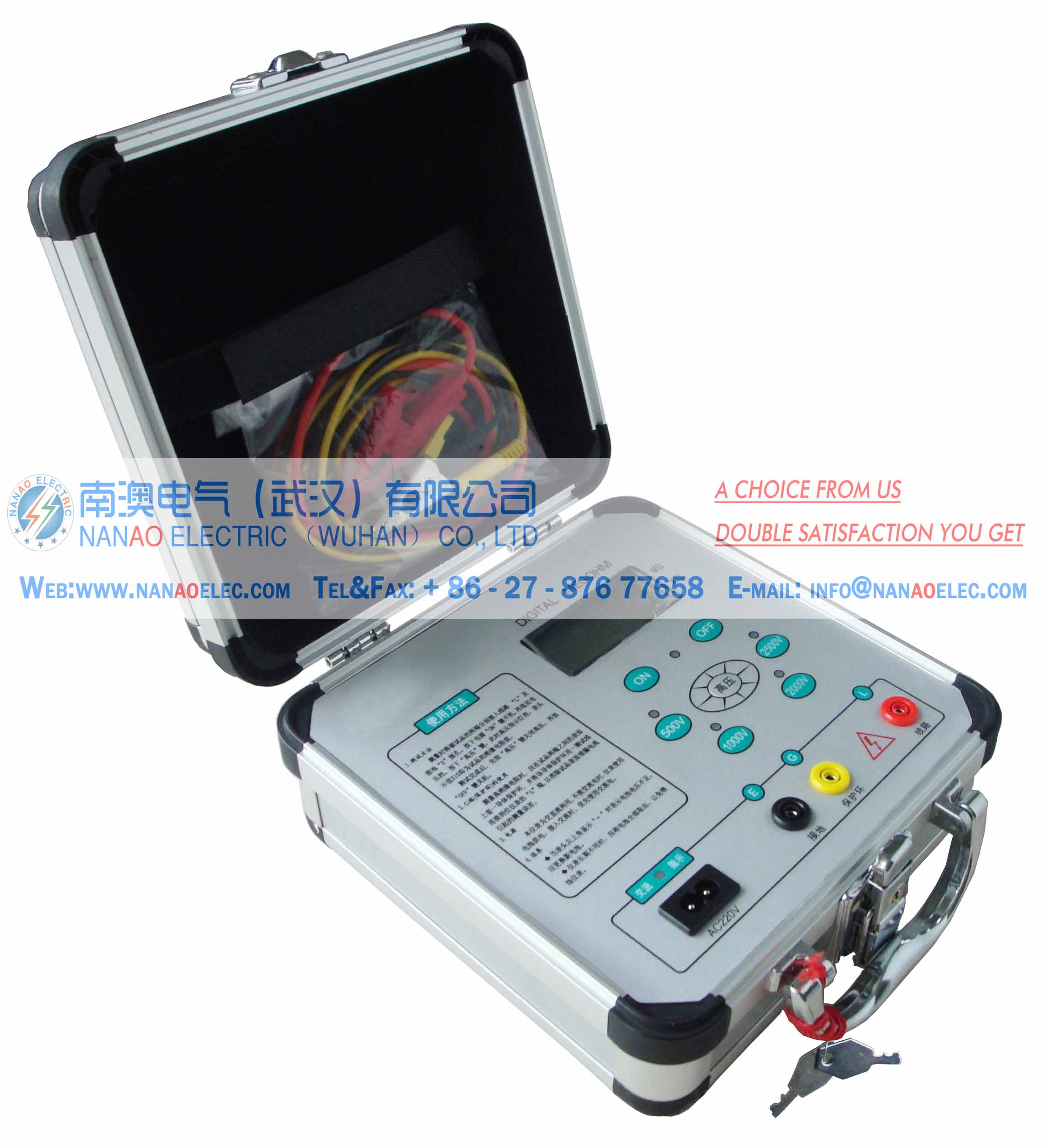

NA536Series Digital Megohmmeter
Product introduction
NA536 Megohmmeter consists of medium and large scale integrated circuit with high output power and high short-circuit current value features. The output voltage is up to four grades. The built-in battery served as power supply become high DC voltage by DC/DC transformation, which goes from E pole to L pole via the object being tested. By this way, it produces a current from pole E to pole L, which converted by I/V and computed by the divider. The value of insulation resistance will display on the LCD finally.
Also called name
Digital megger, digital megger, digital megger, insulation sheet, insulation resistance tester, high voltage insulation resistance tester, insulation resistance meter, insulation characteristics tester, electric shake table, digital shake table, the number of significant shake table, digital Megger ohmmeter, digital Megger ohmmeter, high voltage digital insulation resistance tester, digital high voltage insulation resistance tester, digital pressure megger, digital pressure megger, high voltage digital megger, digital insulation meter, digital insulation meter, electronic insulation resistance tester, digital insulation resistance tester, digital insulation resistance tester, digital insulation resistance tester, insulation resistance tester, digital electric megger, digital high megger, high-power high megger
The Characteristics of the products
1. High output power, strong load ability, and strong anti-interference ability.
The shell body is made of aldural/high-strength aluminum alloy, equipped with potential protection ring and fourth-order active low pass filter, it can play an effective role in shielding external power frequency and strong electromagnetic field. For the measurement of capacitive specimen, since the short-circuit current is greater than 1.6mA, it’s easy to rise the test voltage to the rating of output voltage. For the measurement of low resistance, it will not affect the test by using scaling method.
2. The meter is battery powered and the measure range is converted automatically. The easy-to-read panel and LCD display make measurement very convenient and fast.
3. The output short-circuit current of the meter can be measured immediately without estimation.
Power supply: AC110V/115V/120V/127V/220V/230V/240V optional
Input frequency: 50Hz/60Hz optional
