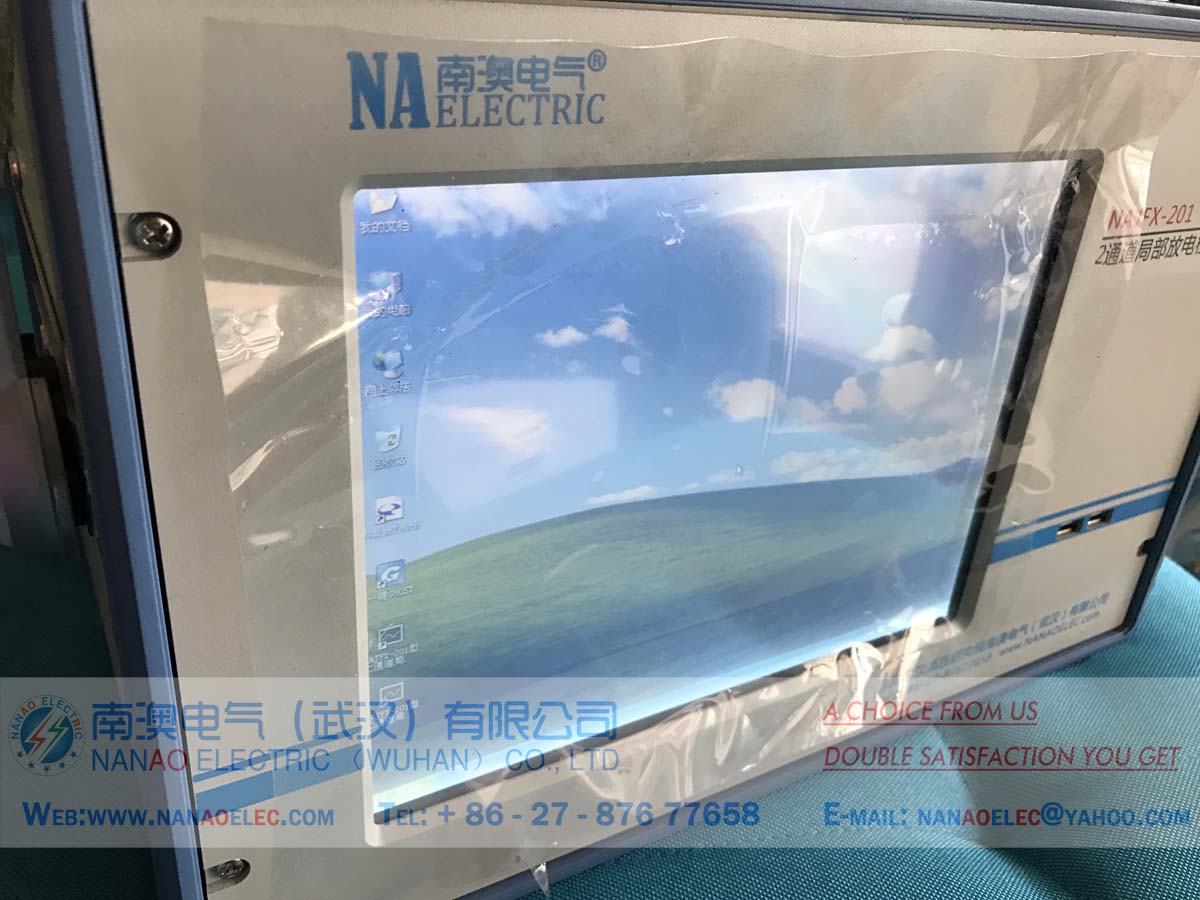

NAJFX Partial Discharge Test System

Also called named
Partial discharge analysis system, partial discharge detection system, on-site partial discharge detector, partial discharge tester, partial discharge tester, partial discharge test system

Product characteristics
1、4 channel independent high-speed sampling technology, to achieve 4 channels of uninterrupted non lost cycle sampling, the uncertainty of the index is better than the range of 3%, to ensure the integrity of the detection signal.
2、Large dynamic automatic calibration and measurement range is 0.1 ~ 100000pC.
3、Independent dynamic digital filter FIR function, significantly improve the anti-interference level.
4、Full automatic calibration, automatic power supply, automatic voltage measurement, automatic recording function, combined with automatic infinite wave record and storage function, can store and playback waveform at any time.
5、Adopt ellipse, straight line, sine and dot matrix multiple display mode, a variety of statistical analysis graph (N - Q - Φ, Q - T - Φ, N - Φ, Q - Φ 3D, 2D map) synchronization displayed on the screen, analysis and diagnosis is more effective and efficient.
6、The software system based on Windows platform, make the operation more convenient and the function is more powerful, unified button to restore function, to ensure stable operation of instrument.
7、Imported double aluminum magnesium alloy case, portable integrated design, strong and lightweight. The weight is less than 20 kg.
