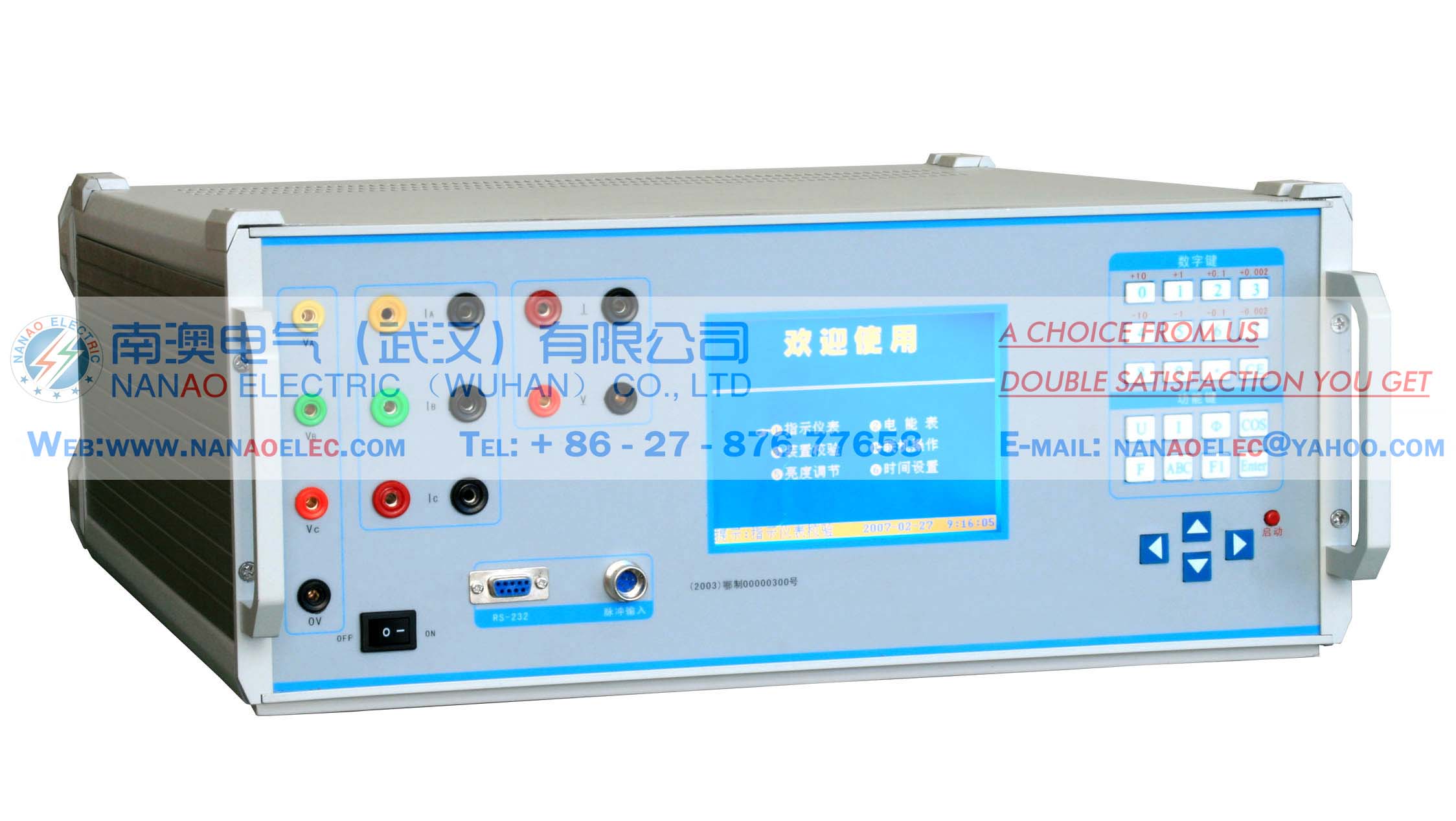

NAGKT-III Three-Phase AC and DC calibration meter (three-phase power supply)
Also called name
Three-phase AC and DC meter, three-phase power supply, portable meter, integrated meter calibrator, three-phase active and reactive power meter, three-phase phase meter, three-phase meter calibration table calibrator
Overview
NAGKT-III-type three-phase AC and DC calibration table (three-phase four-wire system) is a new generation of portable table meter integrated meter calibrator. The product has the appearance of the United States, full-featured, excellent indicators, high reliability, simple operation and so on. Phase table, power factor meter, frequency table, synchronization table, single-phase power meter, three-phase active and reactive power meter, phase table, power factor meter, frequency meter, All kinds of energy meter.
Main function and characteristic
1, DSP-based digital signal synthesis and data acquisition and processing technology, making the device output stable and reliable, high precision, excellent indicators. Device class 0.1.
2, the output AC (three-phase) voltage, current, DC voltage, current
3, voltage, current range can be set according to the table under test, automatic shift.
4, the table source of one, with power, frequency, phase, power factor and AC and DC voltage and current standards, without the need to reprovision the standard table manually or automatically check a variety of instructions Meter, error. During calibration, both primary and secondary values can be displayed at the same time.
5, the calibration results can be stored, preview.
6, the configuration of a powerful computer management platform, through computer verification, transmission, printing and data management.
7, large-screen LCD display, pop-up menu in English and Chinese, the cursor any move to provide online help prompts, the operation is very simple, display rich content.
8, the device has an external software calibration.
9, load capacity, can be directly with 1uF capacitor (100V file)
10, multiple protection: power linkage protection, current limit protection, automatic power amplifier output off.
11, strict overload test, the shock test, misuse test, high-temperature aging test, the reliability of abnormal good.
12, use German standard chassis, small size, light weight, easy to carry.
Technical Data

Item		Data
Voltage	Output range	Basic Range：75mV、25V、100V、250V、600V
		Automatic Range:  15V～600V
	Adjust range	0～130% UN
	Adjust fineness	0．002%UN
	Max output capacity	≥20VA Per Phase
	Accuracy	0．1 Level
Current	AC Range	Basic Range：0.1A、1A、5A、25A
		Automatic Range：0.05A～25A
	DC Range	Basic Range：20µA、200µA、2mA、20mA、0.1A、1A、5A、25A
		Automatic Range：20µA～20mA及0.1A～25A
	Adjust range	0～130%IN(25A，0～120%)
	Adjust fineness	0．002%IN
	Max output capacity	≥25VA Per Phase
	Accuracy	0．1 levle
Frequency	Adjust range	45HZ～65HZ
	Adjust fineness	0.01HZ
	Set data precise	±0.01HZ
Phase	Adjust range	0～359.99°
	Adjust fineness	0.01°
	Accuracy	±0.4°(When Largest Current & Voltage Output)
Accuracy of three phases capacity		0.1 level（0.2 level for choose）
Three phases symmetry		Three-phase four-wire: 120°±0.4° Three-phase three-wire: 60°±0.4°
Voltage and current waveform distortion		< 0.3%
Stability Degree		≤0.02%(1 min)
Accuracy		0.1%
Weight		18kg
Size		432×448×175
Supply Power		220V±10%
