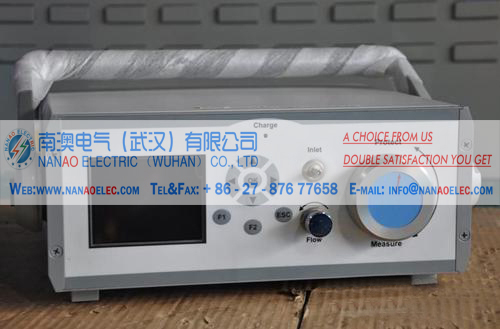

NASF6 High Accuracy SF6 Discharge Analyzer
Also called name
NASF6 high precision SF6 discharge decomposition analyzer, SF6 discharge decomposition analyzer, high precision SF6 discharge decomposition tester, SF6 decomposition product tester, SF6 decomposition analysis instrument
1.1 Functional Overview
NASF6 decomposition product analysis tester, provides a simple SF6 decomposition products on-site detection method. In use, the SF6 gas is connected to a gas-filled SF6 gas chamber, allowing SF6 gas to flow through the sensor at a constant flow rate to directly measure the amount of main decomposition products in the SF6 gas.
All sensors use SF6-specific sensors, long-life design, to ensure the accuracy and reproducibility of measurement results.
Main applications: fault location, routine testing, partial discharge monitoring, gas purification / filtration monitoring, fault high voltage contact inspection, SF6 decomposition product detection, check the switch decomposition products.

1.2 Main features
Long-life detection components
No colorimetric tube, the sensor is directly measured
Excellent accuracy and reproducibility
High precision, good repeatability
Built-in regulator and electronic mass flowmeter
Large LCD display
Lightweight and easy to use
rechargeable battery-powered, AC-DC dual-use
fast response, almost no warm-up waiting
The measurement results are not affected by the ambient temperature

1.3 Technical Specifications
Measuring range: SO2: 0 ~ 100 PPM; H2S: 0 ~ 100 PPM
Sensitivity: SO2: ± 0.1 PPM; H2S: ± 0.1 PPM
Response time: 25s
Sampling: built-in flow valve, flow meter;
3.6 m sampling tube and a pressure reducing valve connector.
Operating temperature: -10 ℃ ~ +50 ℃
Power supply: DC: built-in rechargeable battery, AC: 220V / 50Hz;
Read out: large LCD graphic display;
Size: 258 (mm) × 240 (mm) × 88 (mm);
Weight: 2.6 kg;
Output interface: USB1.2 specification (optional configuration);
Sampling flow: 0.01 ~ 1L / min, recommended flow: 0.25L / min.
