NABCD Intelligent electrical parameters measuring tester

Also called name
Transformer empty load characteristic tester, electrical parameter measuring instrument, intelligent no-load load characteristic tester, intelligent transformer load characteristic test, intelligent transformer characteristic tester, transformer no-load tester

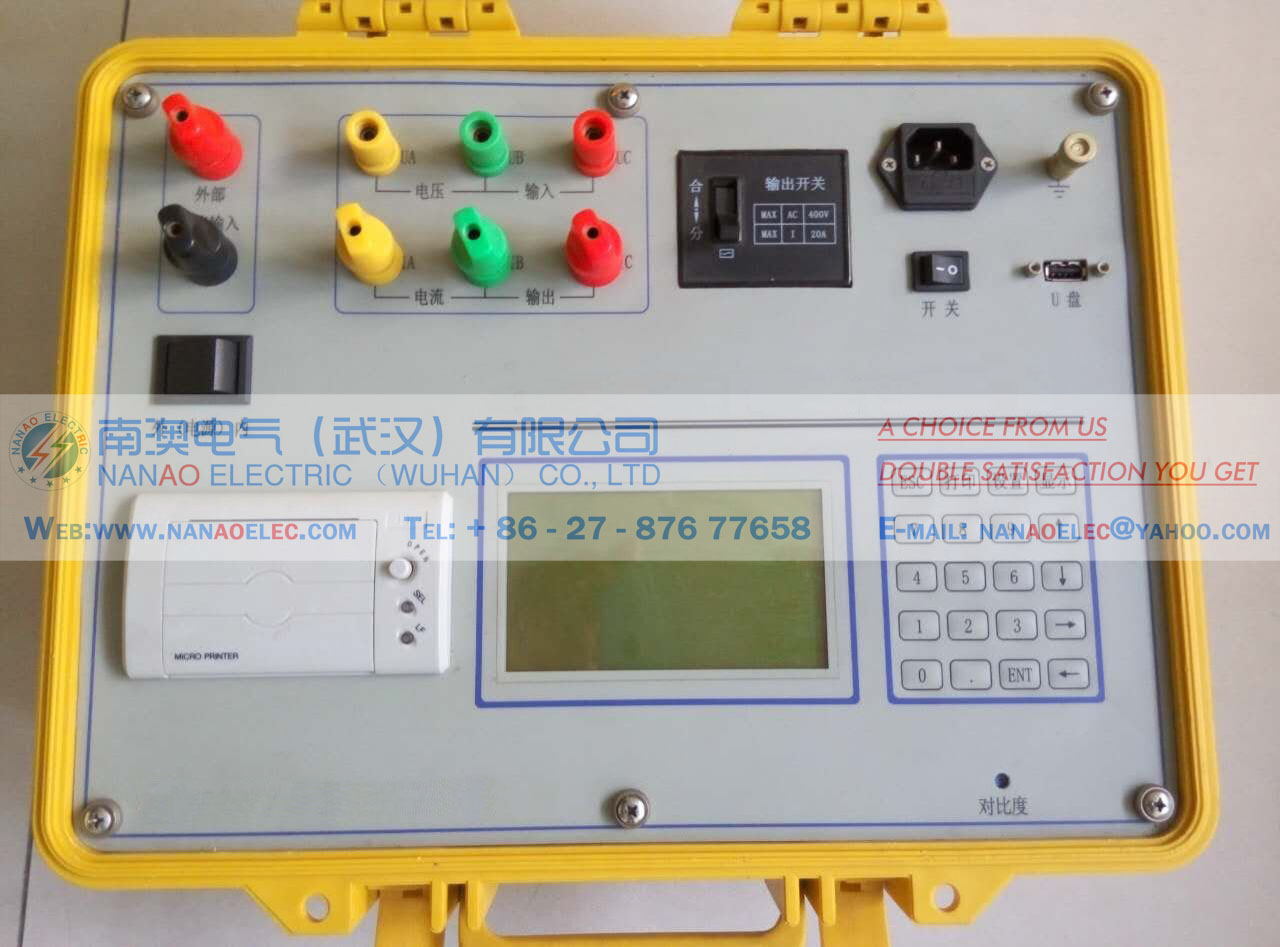

NABCD Intelligent Tester of Electric Parameter
This tester can measure the no-load of the transformer, and the active current (voltage) value, power factors of the short-circuit experiment at the same time with computer controlling, digital display, synchronous samples in avoid of many traditional shortages.

Main features
1. Converting automatically without connecting CT/PT outside
2. Short-circuit losses: the value of the resistance voltage converts to the one of the 75℃ situation
3. Be made up to comprehensive consoles for transformers with direct resistance instrument and voltage controller
Voltage : 0～600V(circuit voltage)
Current：0.3～90A
Accuracy：0.5%
Working power resource：AC220V ; 50HZ
